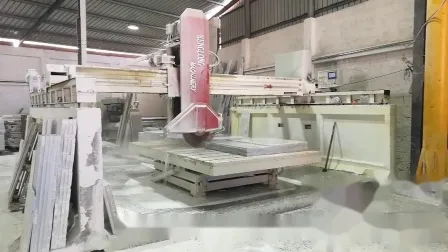

Auto Precise Positioning Stone Equipment Tile Cutter Infrared Slab Bridge Cutting Machine

Basic Info.

Model NO.	HLQC-600/800
Power of Main Motor	7.5kw
Feeding Speed	0-3000mm
Working Thickness	20-50mm
Number of Jobs	8
Transport Package	Standard Export Packaging
Specification	5200*2050*2150
Trademark	Henglong
Origin	Fujian, China
HS Code	84642090
Production Capacity	20sets /Month

Product Description

Product Description
1. Wide bridge structure with crossbeam, large size of slab cutting available
2. Cross beam use the high strength of the castings, avoid deformation after long-term use.
3. Host walking gear row with high precision, cooperate oil-immersed guide transmission, less resistance, high accuracy realized.
4. Dust proof design of the slide track ensures the precise guide movement & long lifespan.
5. The magnetic sliced ensure slicing precision gate.
6. Vertical movement of machine head is driven by hydraulic system, and the stroke is adjustable.
7. Worktable can tilt 90°, and rotate 0-360°for special processing.
8.Equipped with infrared device, precise cutting location reachable.
9.Touch-sensitive operating system, friendly human-machine interface design.

Technical Parameters:
